Sandboxes

Studio gives you a read-only view of explicitly registered sandbox inspectors. Use it to answer, “What is in the workspace, what is running, and what did it print?” while developing an agent.

Open http://localhost:4021/sandboxes. The compatibility path http://localhost:4021/ui/sandboxes redirects to the same page with the default UI configuration.

Register an inspector

Studio does not discover sandboxes from agent tools. Create a sandbox, choose the read capabilities to expose, and register the inspector explicitly:

import { Agent } from '@anvia/core/agent'
import {
  DockerSandboxClient,
  createDockerSandboxTools,
} from '@anvia/sandbox'
import { Studio } from '@anvia/studio'

const client = new DockerSandboxClient()
const sandbox = await client.createSandbox({
  image: 'node:22-bookworm',
  workspace: { type: 'ephemeral' },
  network: { mode: 'bridge', ports: [3000] },
  files: {
    'README.md': '# Sandbox workspace',
    'server.js': 'console.log("ready")',
  },
  runtime: {
    commandTimeoutMs: 30_000,
    maxOutputBytes: 128_000,
    maxFileBytes: 1024 * 1024,
    maxProcesses: 4,
  },
})

const tools = createDockerSandboxTools({
  sandbox: sandbox.runtime,
  tools: [
    'exec_command', 'read_file', 'write_file', 'list_files',
    'list_ports', 'list_processes', 'read_process_logs',
  ],
  exec: {
    commands: { mode: 'allow', values: ['node'] },
    maxTimeoutMs: 30_000,
  },
  readFile: { maxBytes: 128_000 },
  writeFile: { maxBytes: 128_000 },
  process: { maxLogBytes: 64_000 },
})

const agent = new Agent({
  id: 'sandbox-builder',
  model,
  tools: [...tools],
})

const studio = new Studio([agent], {
  sandboxes: [{
    inspector: sandbox.inspector({ files: true, ports: true, processes: true }),
    agentIds: ['sandbox-builder'],
    toolNames: tools.map((tool) => tool.name),
  }],
})

At least one inspector capability must be enabled. File inspection requires both listing and reading; process inspection requires both listing and log reading. agentIds must reference registered agents. Duplicate provider/ID registrations are rejected.

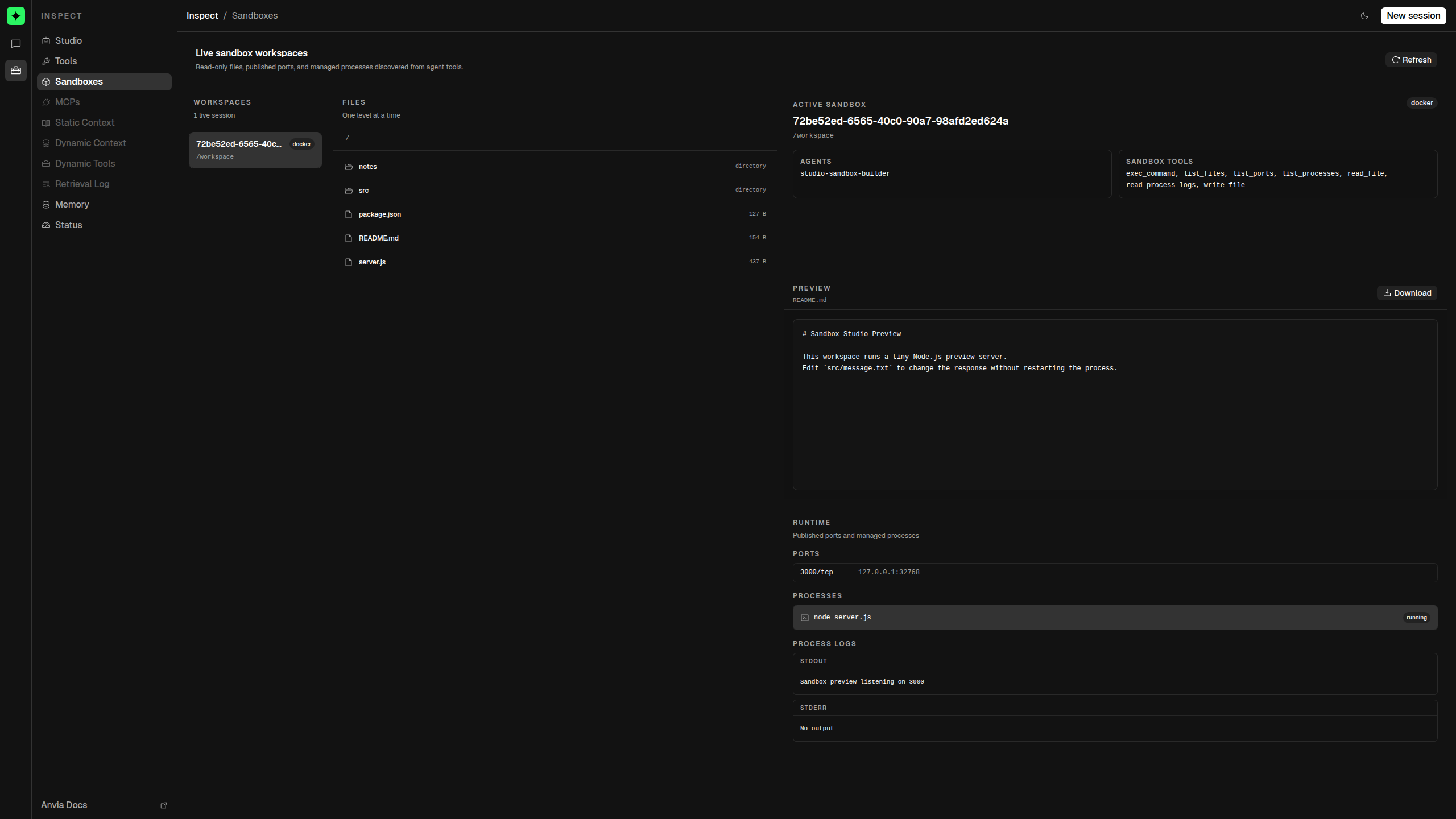

What you can inspect

Surface	What Studio shows
Files	One directory level at a time, with breadcrumbs, entry type, and size.
File preview	UTF-8 text and common image formats, plus a download action.
Published ports	Container port and protocol mapped to the provider's host and host port.
Managed processes	Command, arguments, state, and bounded stdout and stderr.
Registered views	Authorized noVNC desktop views such as an @anvia/browser Chromium session.

Studio previews recognized text and image files up to 1 MiB. Other binary files and larger previews are downloads. The runtime refuses file responses larger than 10 MiB, requires relative paths, rejects traversal, disables caching, and bounds process-log reads.

Register browser desktops through the sandbox registration's views array. See Browser desktop for automatic Playground display and human-control leases.

Inspector actions versus agent tools

The Sandbox page cannot write files, execute commands, start or stop processes, or destroy a sandbox. The agent tools can do only what their explicit tool tuple and policies allow.

Own the lifecycle

Studio never owns or destroys a registered sandbox:

try {
  await studio.serve({
    hostname: '127.0.0.1',
    port: 4021,
    onShutdown: async () => {
      await sandbox.destroy()
    },
  })
} catch (error) {
  await sandbox.destroy().catch(() => undefined)
  throw error
}

Studio is a development inspector, not a hosted sandbox control plane. Protect the Studio origin and treat file previews, process logs, and port addresses as sensitive.

Read-only API

GET /sandboxes
GET /sandboxes/:sandboxRef
GET /sandboxes/:sandboxRef/files?path=.
GET /sandboxes/:sandboxRef/files/content?path=README.md
GET /sandboxes/:sandboxRef/ports
GET /sandboxes/:sandboxRef/processes
GET /sandboxes/:sandboxRef/processes/:processId/logs?tailBytes=65536

Use the opaque ref returned by GET /sandboxes.
